Pris er inkludert motorisert filmforstrekk samt autokutt etter endt pakkesyklus.
Maskin med muligheter for mange tilvalg, sørger for alt man trenger på en viklemaskin av denne typen.
Utvalg av tilleggsutstyr: integrert vekt, autokutting av film, toppresse, pakkehøyde opptil 3,5m.

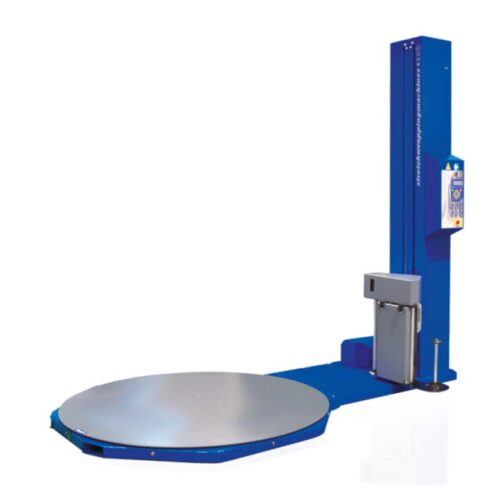

The main advantage of this machine is to offer top-level functions and features at a great price. It has everything is needed: inverter for rotation motor, inverter for carriage motor, carriage with electro-magnetical clutch or power pre-stretch system, a wide range of options and programmes to meet every requirement. In the design process every detail has been carefully conceived to be rational: weight, dimensions, materials, electronics, wiring, assembly and transport. The result is C-One Base: those who believe that low prices and quality can not be found in the same machine will be proven wrong.
- Electronic printed circuit board for the management of the cycle
- Frequency controller for carriage speed adjustment
- Frequency controller for turntable speed adjustement
- Loading plate ø 1500 mm
- Maximum height of pallet: 2200 mm
- Maximum size of the pallet: 800×1200 mm
- Maximum loading weight: 1200 kg
- Electromagnetic brake for the stretching of the film
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at 0 position
- Power board IP54
- 3 password levels (including lock password)
- Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle
- Parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height
- 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
- Storage of 32 end user programs
- 3 working ways: semimanual, semiautomatic, fixed height
- Strenghtening operation
- Acoustic warning at the cycle start and stop
- Autodiagnostic
- Wrapped pallet counter
- Powder coating
- Braked turntable at the end of the cycle
- 2 years warranty
TILVALG
- Top-press
- Power pre-stretch
- Adjustable power pre-stretch
- Power pre-stretch with auto cut-off system
- Roping system
- 3000 mm max wrapping height
- 1650 mm turntable
- 1800 mm turntable
- 2000 kg max pallet weight
- Remote control
- Ramp
- Pit frame
- Photocell for dark loads
- Clip to tie the film to the turntable
- Weighing system
- Mechanical system to brake roll containers
- Feet under the machine
- Safety fences
Pris er inkludert motorisert filmforstrekk samt autokutt etter endt pakkesyklus.
Maskin med muligheter for mange tilvalg, sørger for alt man trenger på en viklemaskin av denne typen. Utvalg av tilleggsutstyr: integrert vekt, autokutting av film, toppresse, pakkehøyde opptil 3,5m.
The main advantage of this
Height:
Width:
Lenght:
Høyde på rotasjonsplate:
Weight: 400 Kg
Power supply:
Power absorption:
